The Alpine M-Bus Protocol

Last change: 2004/05/05 (link chapter)

Overview

The M-Bus is the old connection between Alpine headunits and CD changers, the DIN-style circular plug. I don’t know much about its history, usage for other brands, etc. (Volvo and Sherwood are among it.) I just had to need to hack it in order to connect an MP3-player instead of a changer to the radio, so I started measuring. Below is what I found out with my gear (9294 head unit, 5952 changer), your mileage may vary.

Electrical Characteristics

The bus uses a single wire and half duplex transmission. At both the radio and the CD changer end it is pulled high to about 10 volts idle level, with resistors in the range of 1800 Ohms. Both devices can now drive the bus low with their open collector outputs.

So it is not really TTL friendly. I used a piece of circuitry like below on my end, to feed it into a microcontroller:



Logical Layer

The line coding is unusual. It’s none of the textbook codes, instead some kind of pulse width modulation. A short low pulse (about 0.6 ms) is a binary zero, a longer pulse (about 1.8 ms) is a one. The distance between the pulses remains constant, about 3 ms. The resulting baud rate is about 325 baud, fairly slow.

In other words, a bit starts with a falling edge, then the line is held low for 0.6 or 1.8 ms. The next bit starts after 3 ms, if there is more.

Bits are grouped to packets, with length always multiple of 4 bits. So it makes sense to write down packets with hexadecimal digits. The most significant bit is transmitted first, so they are in left to right reading order. A packet ends when no more bits are transmitted back to back within the bit time,  when the line stays high.

The packets I’ve seen are 12 to 64 bits long, 3 to 16 hex digits. The first digit (the first 4 bit) is some kind of address, it is always ‘9’ if coming from the changer, and ‘1’ if coming from the head unit. The last digit is a checksum. It took me quite a while to figure out how it is calculated, but the end result is simple: XOR of all hex digits excluding the checksum, add ‘1’ (may wrap from ‘F’ to ‘0’).

Here’s an example of the most simple packet sent by the radio, I’ve called it the ‘ping’ packet:



Hex description

address

command

checksum

Hex Digit

1

8

A

Binary Digit

0

0

0

1

1

0

0

0

1

0

1

0

Bit description



























In the following, I will use this style of table to document the packets I’ve seen. I will omit the checksum, because for all packets containing data this will vary.

Command Reference

I cannot give a complete reference, only what I’ve seen with my equipment. I have named the commands arbitrary. Corrections and additions welcome.

Ping

Hex description

address

command

Hex Digit

1

8

Binary Digit

0

0

0

1

1

0

0

0

Bit description

















This is sent by the radio if nothing else is to by said and done, to keep the communication alive. The expected response from the changer is ‘Ping OK’.

Ping OK

Hex description

address

command

Hex Digit

9

8

Binary Digit

1

0

0

1

1

0

0

0

Bit description

















This is sent by the changer in response to a ping packet.



I preferred Excel for the “real” documentation of the commands, so here’s the detailed reference. I have not made a documentation about the semantic of the commands, sorry.

Tools

When I worked on this, I made myself some tooling to tackle the bus.

M-Bus  <->  RS232 Converter



The first “product” is an Atmel microcontroller implementation of the physical and logical layer. It can listen on the M-Bus side and send it out again as a hex dump via RS232. Packets are separated with a linefeed. For the other direction, it receives and collects hex dump chars from the RS232. When a packet is “terminated” with a linefeed, it will be sent out to the M-Bus.

For most applications, this is all you need. The converter allows to talk with the M-Bus via an RS232 link. A terminal program can be used for fist steps.

Hardware

On the left is the DB9 jack for RS232, right is a connector for the M-Bus (ground, bus, 12V). The M-Bus supplies the power. On the top is the connector for in-circuit programming the board. The design is very straightforward. The Atmel 90S2313 is clocked by a 7.3728 MHz chrystal, which allows nice baudrate generation. Default is 115200 Baud, but can be changed in the EEPROM space of the controller. The transistors close to the BD9 jack are for level conversion (no MAX232), on the upper right is a 5V regulator, beneath that the open collector driver for the bus.

My prototyping board is a little bit different than the schematics below (free-hand drawn with Eagle PCB, not proofed), because I use my own non-standard ISP connector. Below is compliant with the “official” STK200/300 programming cable. There is a very simple cable variant for the printer port out somewhere in the web (can’t find it right now) which does not require active components, just a few resistors and diodes. That’s the kind I use.

The transistors can be practically any small signal NPN type, I just pulled some out of the box. Same goes for the diode D1. But D2 needs to be a Zener diode with 4.7 Volts threshold. The connections to the crystal pins should be short.



Software

Here is the software running on my “M-Bus Dongle”. It also compiles on an AT Mega8 device, if you prefer that. I have compiled it with Gnu-C for Atmel. Hex files for both controllers and sources are included. I use PonyProg to program the hex files.



M-Bus Monitor Application

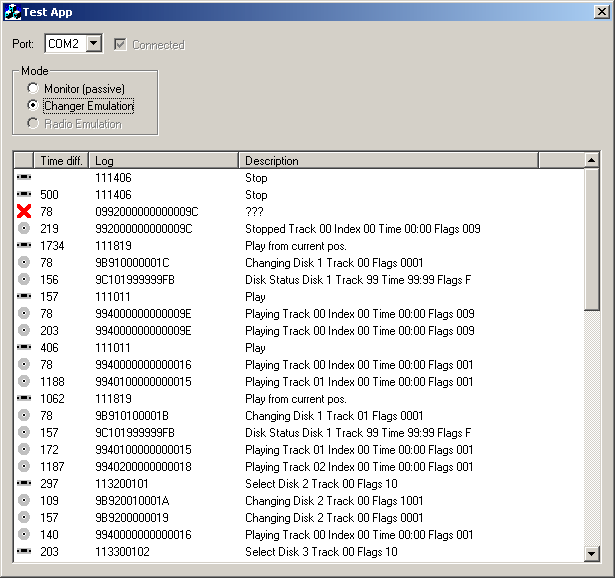

For learning more about the bus, the terminal output is not so nice for humans. For this reason, I made a (Windows MFC) application which displays the hex log together with a readable interpretation, plus an icon indicating the source and status, plus timestamp information. Credits for the serial communication class go to Thierry Schneider.





The application first was a pure passive monitor, telling what’s going on at the bus. Later it got a second mode (shown at work above), where it emulates a changer, cheating the radio. With the changer class I learned what the headunit really wants to hear, versus what info from the changer is babble.



Source and executable for the program are here. I have plenty of real-world logs for various changer states, but from various phases of the project and not in a consistently documented shape. Some have delta timestamps in the first column, some are very raw. I hope it still helps.

Why Am I doing this?

Maybe you’re curious why I went through all that trouble and give out all that info and sources for free (I hope Alpine won’t mind). I have an ongoing project of connecting an Archos mp3-player as an alternative to the “real” changer. I’ve heavily searched the web for M-Bus info, but nobody (except one guy to who’m I couldn’t get contact) seemed to have hacked with the older Alpine gear. So I had to try it on my own. Many other people did valuable stuff in their free time that was of good use to me (like the Atmel tooling), so I’d like to give something back to the community, hoping it can be reused. I’d kindly appreciate a status notification if so (robot-cloaked email address: joergDOThohensohnATgmxDOTde).
